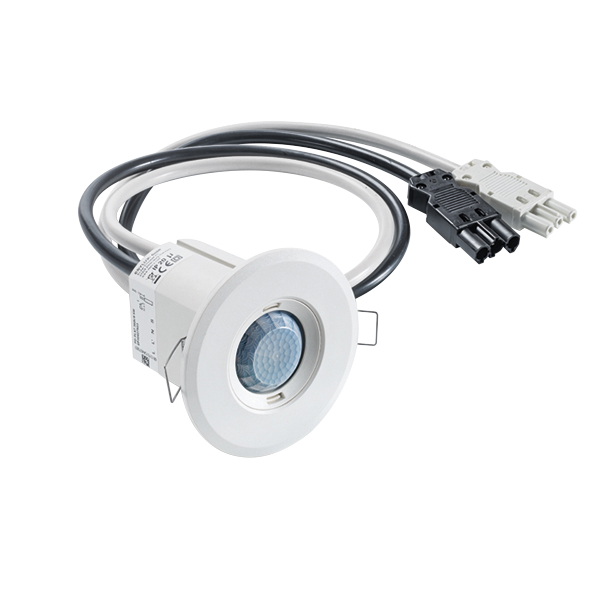

ESYLUX - PD FLAT E 360i/8 RW WIELAND GST18 - EP10427879

€ 186,35
€ 140,64 (incl. BTW)
Beschikbaarheid: Levertijd +/- 3 werkdagen
Niet omruilbaar
Artikelnummer: EP10427879
EAN-code: 4015120427879
Leverancierscode: EP10427879
Categorieën
Merk: ESYLUX

Omschrijving

Plafond-aanwezigheidssensor 360° inbouw, plat ontwerp, bereik ca. Ø 8 m, op afstand bedienbaar, rond wit, Wieland GST-stekker. Design-aanwezigheidsmelder, bereik ca. 8 m in Ø. 1 kanaal, schakelen, met nuldoorgangsschakeling geoptimaliseerd voor LED-lichten. Master/slave (parallelschakeling). Vlakke optiek met design-afdekkingen van kunststof: rond, wit - variabel uitwisselbaar (als alternatief: glas, vierkant, zwart). inbouw en plafondinbouw). Impulsgeveringang. Wieland GST-stekker. Technische gegevens: Apparaatcategorie: Plafondaanwezigheidssensor; Productinformatie: Let op de Verklaring installatieautomaat in het downloadgedeelte van het product.; Leveringsomvang: inclusief lensmasker; Op afstand te bedienen: ja; Montagevariant: Plafondinbouw; Montageplaats: Plafond; Type aansluiting: Stekker, Bus; Connector: WIELAND gesis CLASSIC GST18i3; Lengte aansluitkabel: 0.85 m; Afmetingen: Hoogte 78 mm, Ø 94 mm; Gewicht: 0,302 kg; Materiaal: UV-gestabiliseerd polycarbonaat; Beschermingsgraad: IP20; Toegestane omgevingstemperatuur: -25 °C...+50 °C; Relatieve luchtvochtigheid: 5 – 93 %, niet condenserend; Kleur: wit, overeenkomstig RAL 9010; Besturingssysteem: ON/OFF; Beschermingsklasse: II; Nom. spanning: 230 V ~ / 50 Hz; Inschakelstroom: 78 A / 5 µs; Opgenomen vermogen: 0.3 W; Detectiehoek: 360°; Detectieafstand schuin: Ø 8 m; Detectieafstand frontaal: Ø 6 m; Detectieafstand aanwezigheidsbereik: Ø 4 m; Detectiebereik: tot 50 m²; Aanbevolen Montagehoogte: 2.5 m; Max. Aanbevolen Montagehoogte: 5 m; Helderheidswaarde: 5 – 2000 lx; Aantal verlichtingskanalen: 1; Impulsgeveringang verlichting: 1; Aantal parallel te schakelen melders: 10; Modus: Halfautomatisch, Volautomatisch; Uitschakelvertraging: 300 s; Inschakelvertraging: 30 s; Kanaal: C1 Verlichting; Functie: schakelen; Schakelvermogen: 230 V/50 Hz2300 W/10 A (cos phi = 1)1150 VA/5 A (cos phi = 0,5)600 W LED; Schakelcontact: maakcontact / potentiaalvoerend; Impulsgeveringang: ja; Impulsfunctie: ja; nalooptijd: 60 s...30 min (stapsgewijs verstelbaar).
