Aanbieding!
CEE stopcontacten inbouw, CEE materiaal
Bals 13646: Bals Inbouwcontactdoos QC recht 16A 3P 230V 6H IP44
Beschikbaarheid:
Levertijd +/- 5 werkdagen
€ 7,28 € 12,13 (incl BTW)
Levertijd +/- 5 werkdagen

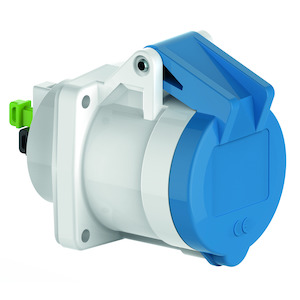

Bals 13646: Bals Inbouwcontactdoos QC recht 16A 3P 230V 6H IP44
| BALS-Prd.-Nr | 13646 |
| EAN | 4024941136464 |
| Product category | Panel mounting socket outlet Quick-Connect, straight |
| Current | 16A |
| Number of poles | 3p |
| Arangement of phases | 2P+PE |
| Position of earth contact | 6 h |
| Voltage | 200 – 250V~ |
| Frequency | 50/60Hz |
| Protection degree | IP44 |
| Colour code | blue RAL 5015 |
| Colour of appliance | Hinged lid blue RAL 5015 Enclosure grey RAL 7035 |
| Connection design | screwless spring terminals as cage clamp with Kontex-contact |
| Maximum conductor size | 4,0 qmm |
| Cable entry | other |
| Height | 72mm |
| Width | 56mm |
| Depth | 89mm |
| Flange size vertical in mm | 56mm |
| Flange size horizontal in mm | 56mm |
| Drill hole dist. vertical mm | 44mm |
| Drill hole dist. horizontal mm | 44mm |
| Material of enclosure | Polyamide |
| Contacts | The contact carrier is made of polyamide The contacts are brass |
Downloads:
| Gewicht | 0.104 kg |
|---|
