Aanbieding!
CEE stopcontacten opbouw

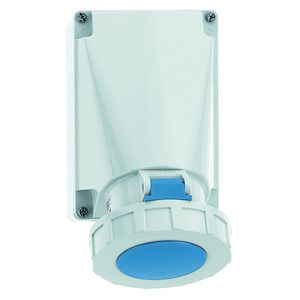

Bals 1157: Opbouw cee stopcontact 63A 2P+A 230V
Beschikbaarheid:
Levertijd +/- 5 werkdagen
€ 71,44 € 119,06 (incl BTW)
Levertijd +/- 5 werkdagen
Bals 1157: Opbouw cee stopcontact 63A 2P+A 230V
Wall mounting socket outlet – housing dimensions 170×118
| BALS-Prd.-Nr | 1157 | |
|---|---|---|
| EAN/Piece | 4024941011570 | |
| Packaging Unit | 5 Piece | |
| BALS-Prd.-Nr | 1157 |
| EAN | 4024941011570 |
| Product category | Wall mounting socket outlet |
| Current | 63A |
| Number of poles | 3p |
| Arangement of phases | 2P+PE |
| Position of earth contact | 6 h |
| Voltage | 200 – 250V~ |
| Frequency | 50/60Hz |
| Protection degree | IP67 |
| Colour code | blue RAL 5015 |
| Colour of appliance | Hinged lid blue RAL 5015 Bayonet ring grey RAL 7035 Housing bottom grey RAL 7035 Housing top grey RAL 7035 |
| Connection design | screw terminal as box terminal with Kontex-contact |
| Maximum conductor size | 25.0 qmm |
| Cable entry | top entry M40 bottom entry M32 |
| Height | 228mm |
| Width | 118mm |
| Depth | 176mm |
| Dimension of enclosure | 170×118 mm (HxW) |
| Material of enclosure | Polycarbonate |
| Contacts | the contact carrier is made of high temperature resistant material the contacts are brass nickel plated |
| Gewicht | 0.8 kg |
|---|
Gebaseerder op 0 beoordelingen
Wees de eerste om “Bals 1157: Opbouw cee stopcontact 63A 2P+A 230V” te beoordelen
