nVent ERIFLEX 563995: TDL COMPACT VIERPOLIG VERDEELBLOK, 400 A
Beschikbaarheid:
Op voorraad
€ 132,23 € 188,91 (incl BTW)
Op voorraad

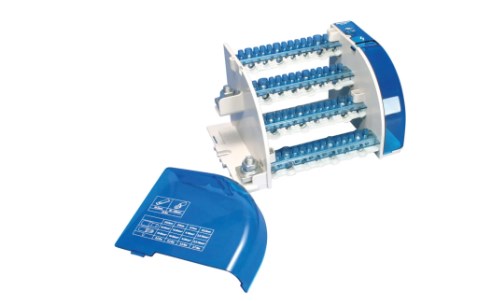

nVent ERIFLEX 563995: TDL COMPACT VIERPOLIG VERDEELBLOK, 400 A
FEATURES
- Connect nVent ERIFLEX Flexibar, insulated braided conductor or cable with lug on line side
- Tinned copper bars allows for copper or aluminum cable
- Transparent protection covers
- Easy and safe connections
- Easily clips onto DIN rail or mounts to panel with screws
- Solid bars provide reliability
- Input separated from outputs
- Supports wiring from both sides
- Design allows for visual inspection of conductor and confirmation of connection
- Large end terminals
- High percentange of fill ratio
- Wiring with or without terminal
- RoHS compliant
- Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
- Halogen free
SPECIFICATIONS
| Part Number | TDL-400A |
| Article Number | 563995 |
| Material | Copper Thermoplastic |
| Finish | Tinned |
| Max Current Rating, IEC | 400 A |
| Max Current Rating, UL/CSA | 400 A |
| Short Term Withstand Current (Icw) 1s | 23 kA |
| Peak Short Circuit Current (Ipk) | 51 kA |
| Max Working Voltage, IEC (Ui) | 1.000 VAC 1.500 VDC |
| Max Working Voltage, UL (Vin) | 600 V |
| Line Side Number of Connections | 1 |
| Line Side Compact Stranded Wire Size | 35 – 120 mm² |
| Line Side Conductor Width | 20 – 24 mm |
| Line Side Stranded Wire Size – Ferrule | 35 – 120 mm² |
| Line Side Wire Size | 1/0 – 250 kcmil |
| Load Side Number of Connections | 14 |
| Load Side Compact Stranded Wire Size | (1) 10 – 50 mm² (2) 10 – 35 mm² (4) 6 – 25 mm² (7) 2,5 – 16 mm² |
| Load Side Stranded Wire Size – Ferrule | (1) 10 – 35 mm² (2) 10 – 25 mm² (4) 6 – 16 mm² (7) 2,5 – 10 mm² |
| Load Side Wire Size | (1) #6 – 1/0 (2) #8 – #1 (4) #10 – #3 (7) #10 – #5 |
| Depth (D) | 121 mm |
| Height (H) | 156 mm |
| Width (W) | 224 mm |
| Unit Weight | 1,69 kg |
| Enclosure Rating | IP 10 |
| Flammability Rating | UL® 94V-0 |
| Complies With | IEC® 60947-7-1 |
| Certifications | CE, ERIFLEX TDL cURus EAC 02942 (Russian Federation) EN 45545 HL3/R23, UD/BD/TD/SB RoHS |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285663099 |
| EAN-13 | 8711893059847 |
| Design Guideline for Distribution Blocks, Power Blocks and Power Terminals | ||||||||||
| Derating according to Ambient* Temperature (°C) to maintain working temperature of 85°C | ||||||||||
| Ambient Temperature (°C) | 30° | 35° | 40° | 45° | 50° | 55° | 60° | 65° | 70° | 75° |
| Derating Coefficient (d) | 1 | 1 | 1 | 0.94 | 0.88 | 0.82 | 0.75 | 0.67 | 0.58 | 0.47 |
| *environment around the terminal blocks inside the enclosure | ||||||||||
Line side and load side number of connections are per pole.
| Gewicht | 1.69 kg |
|---|
